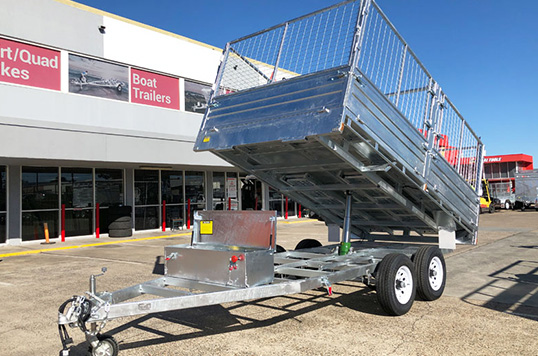

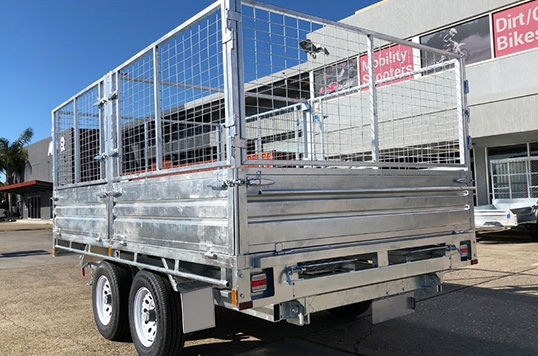

10×6ft ATM 3500KG Flat Top /Flat Bed Hydraulic Tipper Trailer

Features
Optional
Specification

Trailer Features:
1. Removable 450mm High Sides and 900mm Tall Cage (Total Height: 1350mm)
2. 2 Slide out Heavy Duty Loading Ramps
3. 4-Stage Hydraulic Tipping Ram with 3500KG Loading Capacity
4. 15″ Brand New Sunraysia Rims and Light Truck Tyres
5. 1900mm Ultra-long Draw Bar for Easy Reversing
6. 12" Electric Brake on all Four Wheels
7. Drop Down Side & Back Panels (Removable)
8. Chassis: Fully Welded 100mm X 50mm X 5mm RHS
9. 9 Leaf Heavy Duty Springs with Rocker Roller Suspension
10. Upgraded 4mm Galvanised Checker Plate Floor/Gates/Sides
11. Lockable Tool Box for Hydraulic System
12.12V Automotive Battery comes with Hydraulic System
13. Anderson Plug Fitted
14. Tie Down Rails All Around
15. LED Tail Lights
16. ADR Standard Heavy Duty Chain & Load Rated Shackle
17. With Separate Battery Powered Brake Away System
18. Flat 7 Pin Plug
Optional:
1. Free Swing up Jockey Wheel

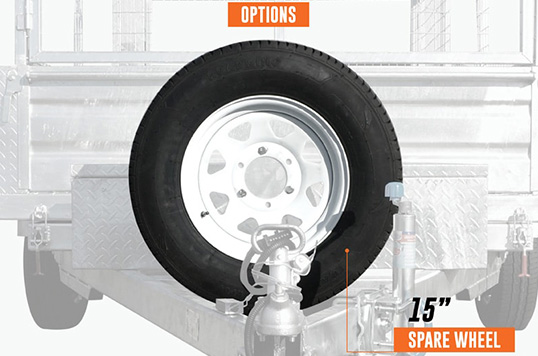

2. 15″ Spare Wheel
3. 900mm Extra High Removable Cage – Extra
4. 600mm Canvas Cover & Support Frames Fitted
5. 900mm Canvas Cover & Support Frames Fitted
6. Heavy Duty Aluminium Loading Ramps 3000KG Rated - Pair
7. Cage Signage
8. Ladder Racks (Height Adjustable)
