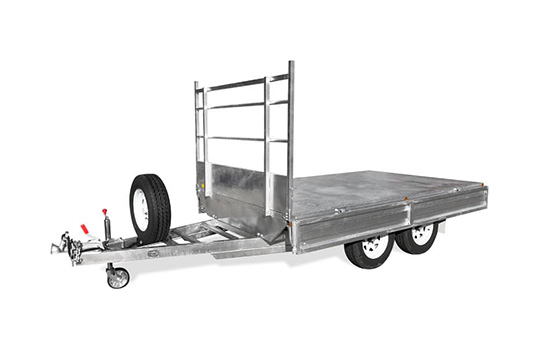

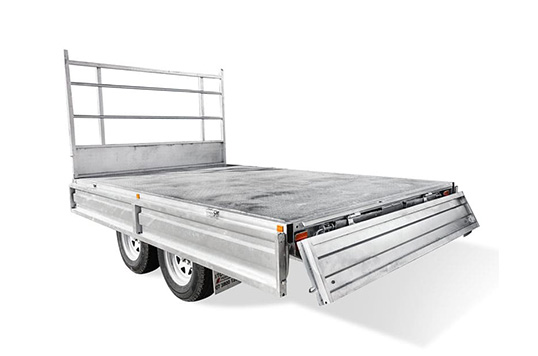

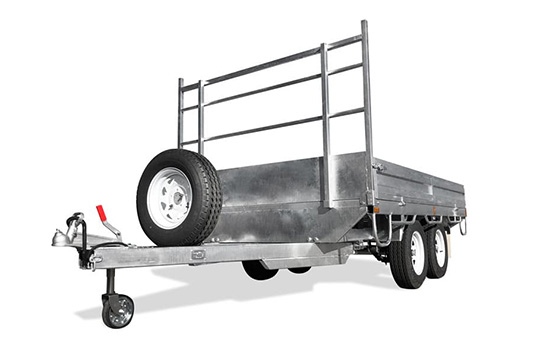

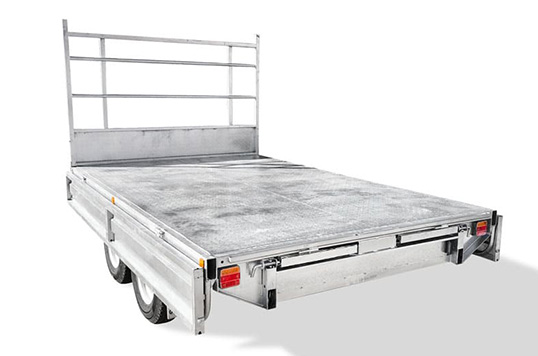

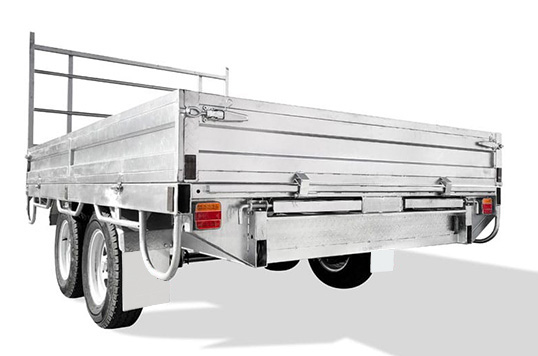

10×6.3ft ATM 2800KG Flat Top /Flat Bed Tandem Trailer

Features
Optional
Specification

Trailer Features:
1. Hot Dipped Galvanised (Rust Free)-2800KG ATM

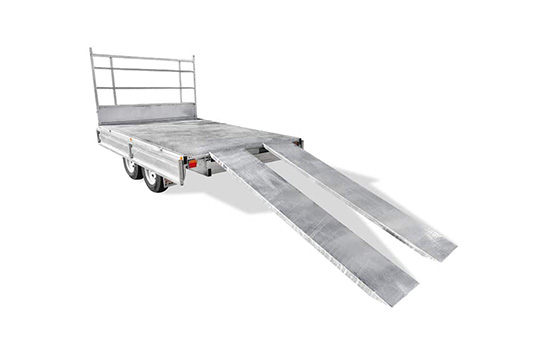

2. Includes 2 x Heavy Duty Slide-out Loading Ramps
3. 1700MM Ultra-long Drawbar, RHS 100X50X3.5MM thickness
4. 3mm Thickness Checker Plate Floor

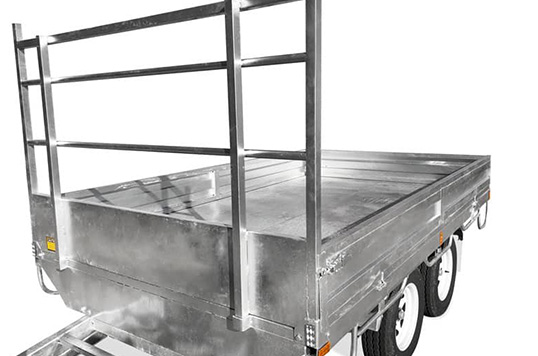

5. Removable Side Walls and Headboard

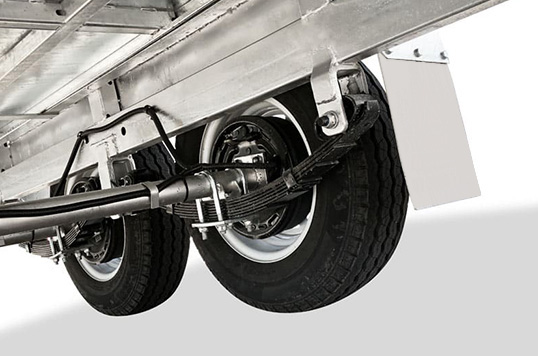

6. 6x60x7mm Leaf Springs Rocker Roller
7. 50MM Solid Axles with 10" Electric Brakes
8. 185R14C Tyre x4
9. Brake Away System Standard
10. LED Tail Lights
11. Double 10mm 15 Pieces Safty Chain & Rated D Shackle
12. Flat 7 Pin Plug
13. 50mm 3500Kg Electric Coupling
Optional:
1. 8" Top Swing up Jockey Wheel

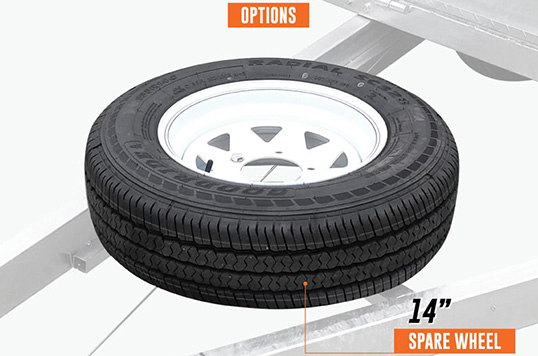

2. 14″ Spare Wheel
3. Stand-up Wheel Holder

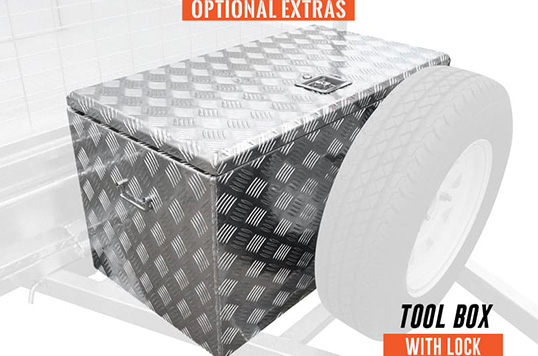

4. Sml Tool Box: 1200mm(L) x 400mm(W) x 500mm(H)
5. Lg Tool Box: 1220mm(L) x 500mm(W) x 500mm(H)

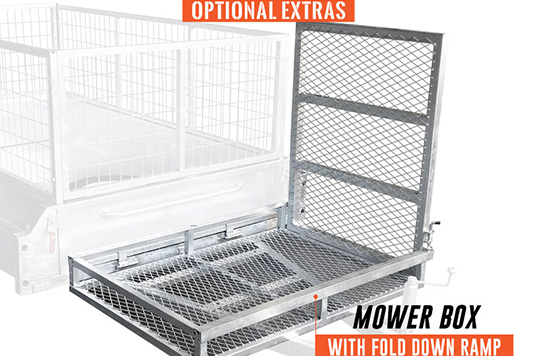

6. Sml Mower Box with Ramp: 1150mm(L) x 630mm(W)
7. Lg Mower Box with Ramp: 1150mm(L) x 760mm(W)
Specification:
Size: 10x6.3 ft
Chassis Frame: RHS 100X50X3MM
Deck Size: 3000mm x 1900mm
Tare Mass: 840KG
Payload: 1960KG
