8×5ft ATM 1990KG Tandem Box Trailer

Features
Optional
Specification

Trailer Features:

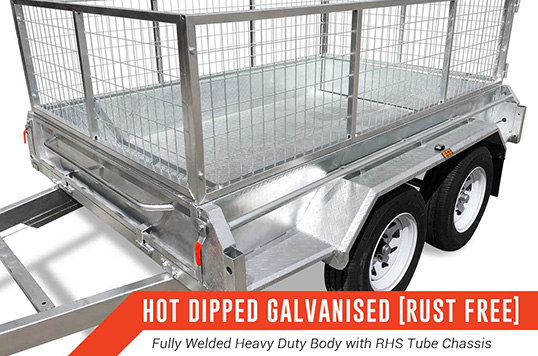

1. Fully Welded Heavy Duty Body with RHS Tube Chassis

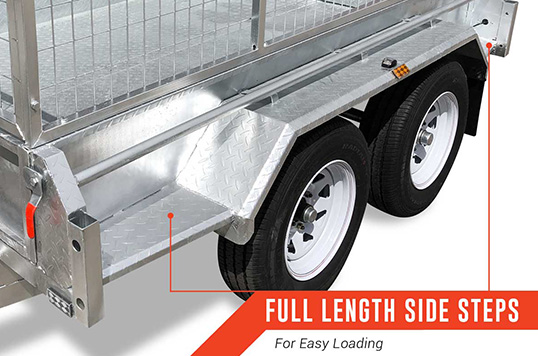

2. Full Length Side Steps
3. Upgraded 2.5mm Thickness Hot Dipped Galvanised Checker Plate Floor/Gates/Sides

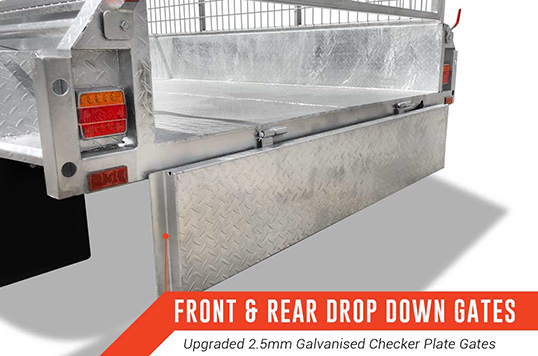

4. Front and Rear Drop Down Gates (Removable)

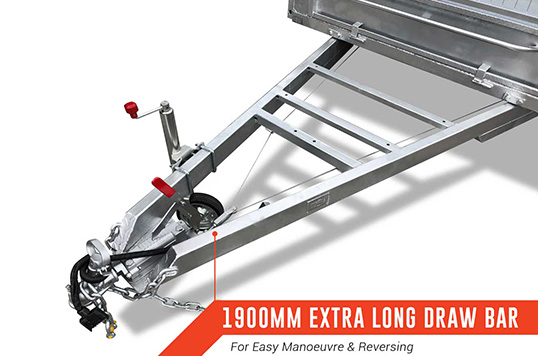

5. 1900mm Long Draw Bar
6. 3 x Additional Support Beams & Crossmembers in the A Frame

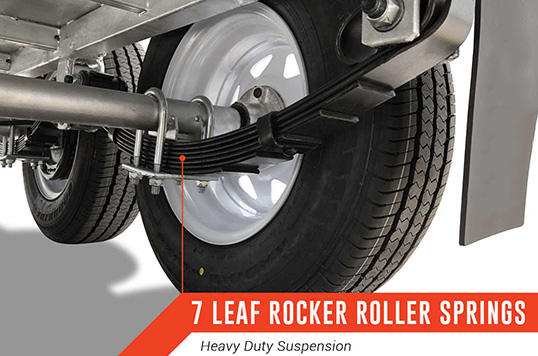

7. AU Standard 6x60x7mm Leaf Eye to Eye Springs
8. 185R14C x4
9. 50mm Round Solid Axles x2
10. Reinforced Under Floor with Extra Support Beams

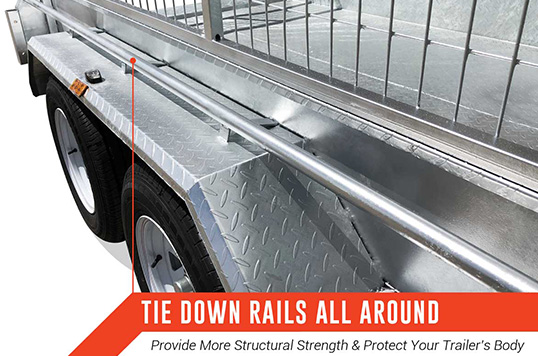

11. Tie Down Rails all Around
12. LED Tail Lights
13. 13mm ADR Standard Safety Heavy Duty Chain 15 pieces & Load Rated Shackle
14. Flat 7 Pin Plug
Optional:

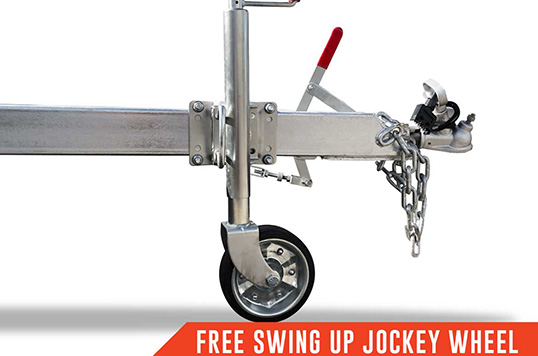

1. 10" Top Swing up Jockey Wheel
2. 14" Spare Wheel
3. 600mm High Cage (Removable)

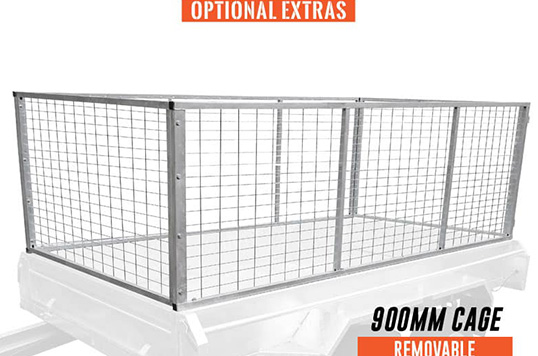

4. 900mm Extra High Removable Cage

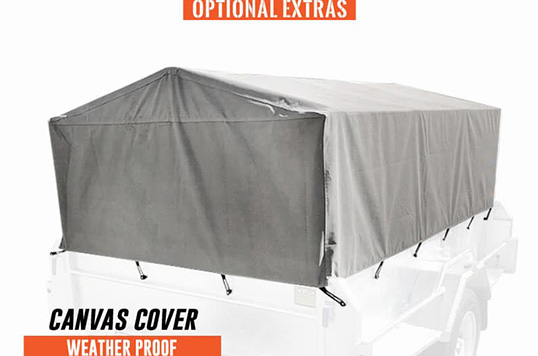

5. 600mm Canvas Cover & Support Frames Fitted
6. 900mm Canvas Cover & Support Frames Fitted
7. 450mm Extra Deep Trailer Sides
8. 2800KG ATM Upgrade
9. 2800KG ATM Upgrade with 450mm Extra Deep Sides
10. Cage Signage

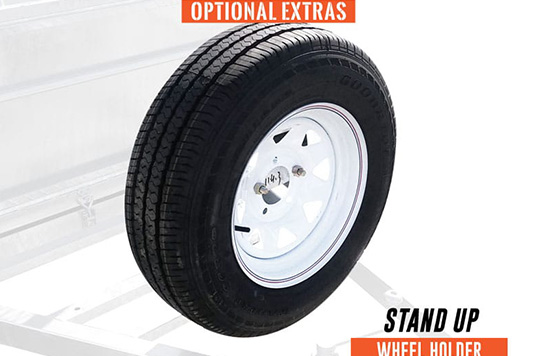

11. Stand-up Wheel Holder

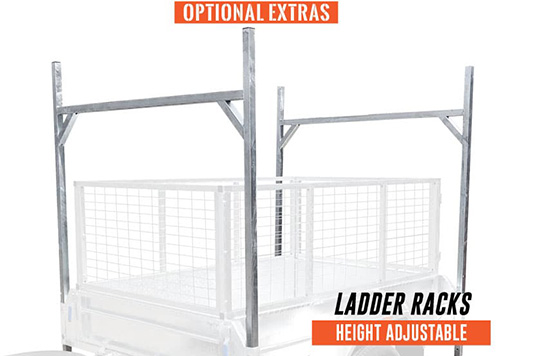

12. Ladder Racks (Height Adjustable)

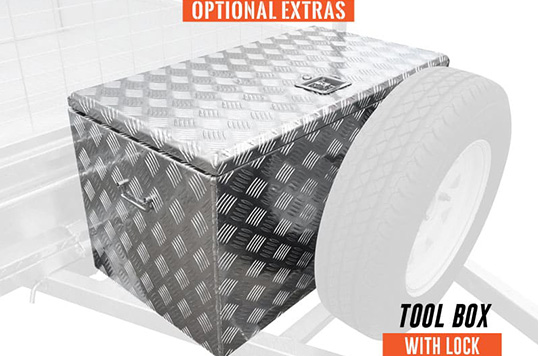

11. Sml Tool Box: 1200mm(L) x 400mm(W) x 500mm(H)
12. Lg Tool Box: 1220mm(L) x 500mm(W) x 500mm(H)

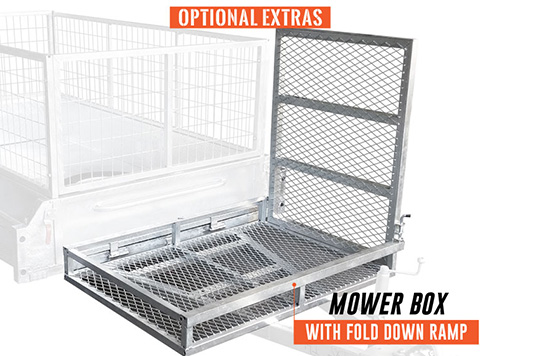

13. Sml Mower Box with Ramp: 1150mm(L) x 630mm(W)
14. Lg Mower Box with Ramp: 1150mm(L) x 760mm(W)
15. Rear Mesh Ramp Door
Specification:
Inner Box Dimensions: 2400mm x 1500mm
Size: 8x5 ft
