6×4ft ATM 1200KG Flat Deck Braked Trailer

Features
Optional
Specification

Trailer Features:
1. Hot Dipped Galvanised (Rust Free)-1200KG ATM
2. Fully Welded Heavy Duty Body & Chassis
3. 2x Adjustable Stabilising Legs

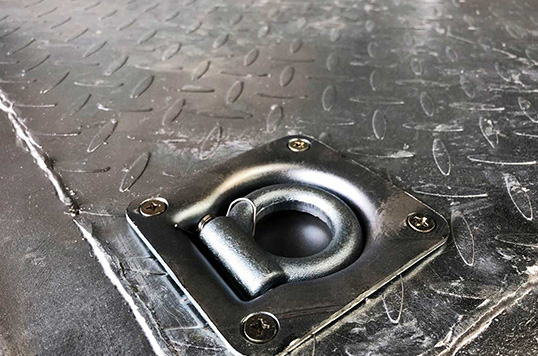

4. 4 x Recessed Tie Down Rings on Deck
5. Total of 4 x Tie Down Rings on Side

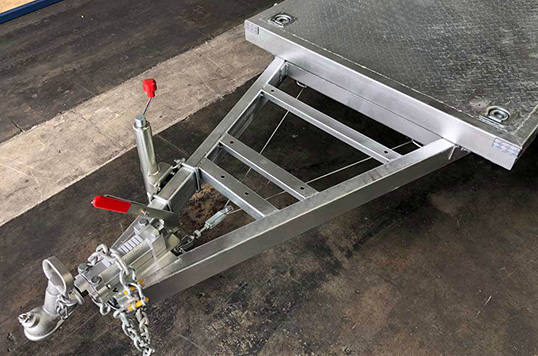

6. 1340mm Long Draw Bar(100 x50x3mm)
7. Upgraded 2.5mm Thickness Galvanised Checker Plate Floor
8. 185R14C x2
9. 50mm Round Solid Axle

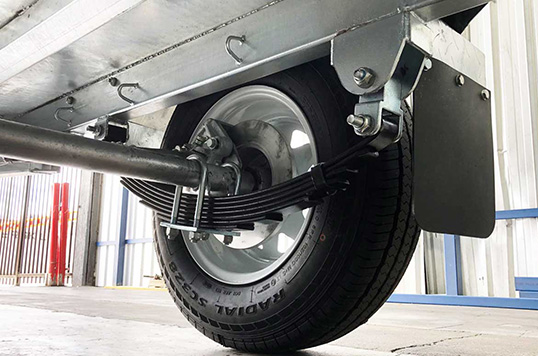

10. 8X45X7 Leaf Eye to Eye Springs (AU Standard 8mm)
11. Solid Decompression Hanger for Better Performance on Corrugated Roads
12. 10" Mechanic Disc Brake
13. LED Tail Lights
14. ADR Standard 10mm Safety Chain 15 pieces & Load Rated Shackle
15. Flat 7 Pin Plug
Optional:
1. 8" Top Swing up Jockey Wheel
2. 14″ Spare Wheel
3. Stand-up Wheel Holder
4. Sml Tool Box: 1200mm(L) x 400mm(W) x 500mm(H)
5. Lg Tool Box: 1220mm(L) x 500mm(W) x 500mm(H)
6. Sml Mower Box with Ramp: 1150mm(L) x 630mm(W)
7. Lg Mower Box with Ramp: 1150mm(L) x 760mm(W)
Specification:
Size: 6x4 ft
Overall Size: 3200mm (L) x 1700mm (W) x 550mm (H)
Chassis Size (Deck Size): 1870mm x 1200mm
Chassis Frame: 100mm x 50mm x 3mm
Tare Weight: 300KG
