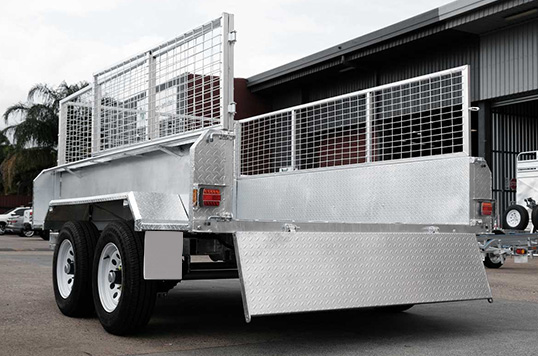

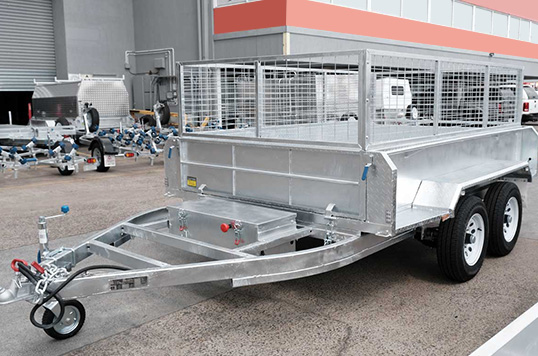

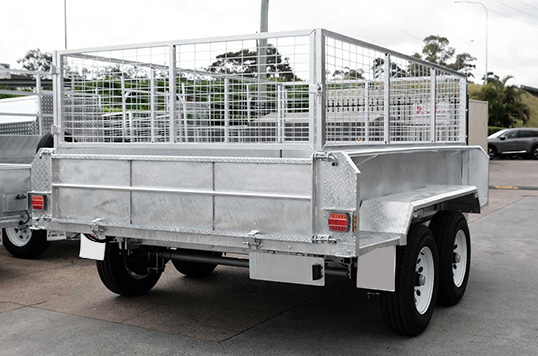

8×5ft ATM 3500KG Hydraulic Tipper Trailer With Cage

Features
Optional
Specification

Trailer Features:
1. One-piece Fully Welded Heavy Duty Chassis
2. Free Build-in Hydraulic Power Pack
3. 600mm High Galvanised Cage
4. 450mm High Trailer Sides

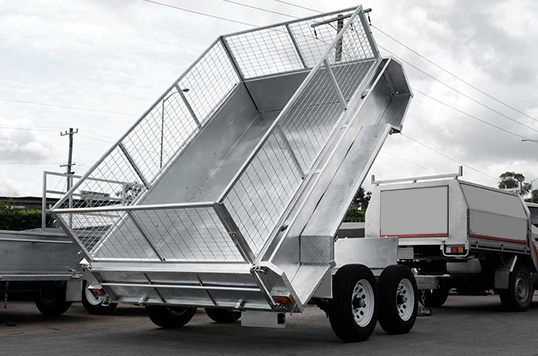

5. 4-Stage Hydraulic Tipping Ram with 4000KG Loading Capacity
6. 1900mm Draw bar
7. 15″ Brand New Sunraysia Rims and Light Truck Tyres
8. 12″ Dual Axle Electric Drum Brakes
9. Solid Axles Rated at 2000KG Each
10. Upgraded 2.5mm Galvanised Checker Plate All Around (Floor/Gates/Sides/Guards)
11. 9 Leaf Heavy Duty Springs with Rocker Roller Suspension
12. 100mm x 50mm x 5mm Box Section Used On Drawbar and Main Chassis
13. Electric Brake-away Unit Fitted
14. Anderson Plug Fitted
15. Lockable Tool Box for Hydraulic System
16. Front and Rear Drop Down Gates
17. Tie Down Rails All Around
18. 12V Automotive Battery comes with Hydraulic System
19. LED Tail Lights
20. ADR Standard Heavy Duty Chain & Load Rated Shackle
21. Flat 7 Pin Plug
Optional:
1. Free Heavy Duty Swing up Jockey Wheel & Manual Parking Brakes

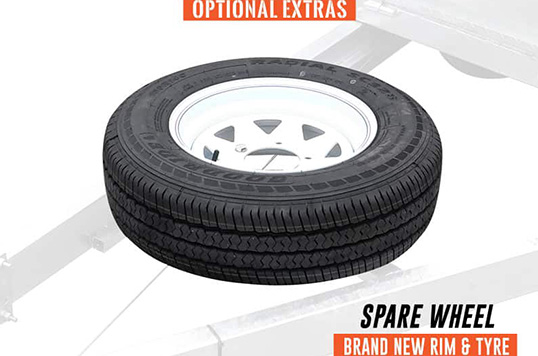

2. 15″ Spare Wheel

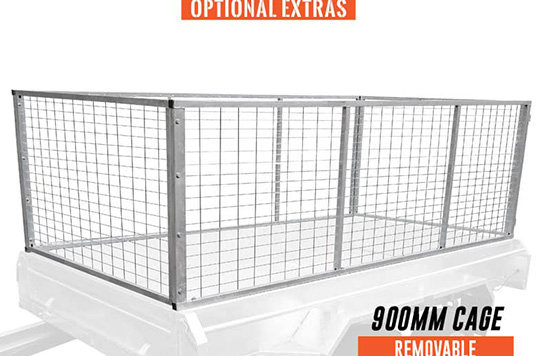

3. 900mm Extra High Removable Cage - Extra

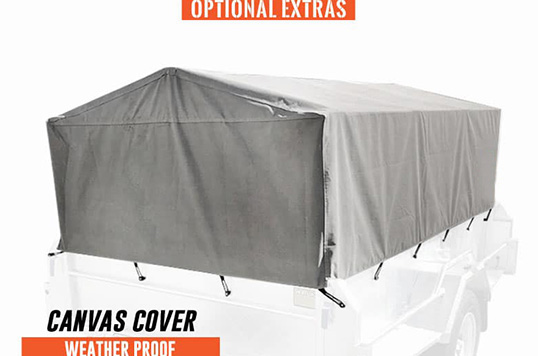

4. 600mm Canvas Cover & Support Frames Fitted
5. 900mm Canvas Cover & Support Frames Fitted
6. Heavy Duty Aluminium Loading Ramps 3000KG Rated - Pair
7. Cage Signage
8. Ladder Racks (Height Adjustable)
